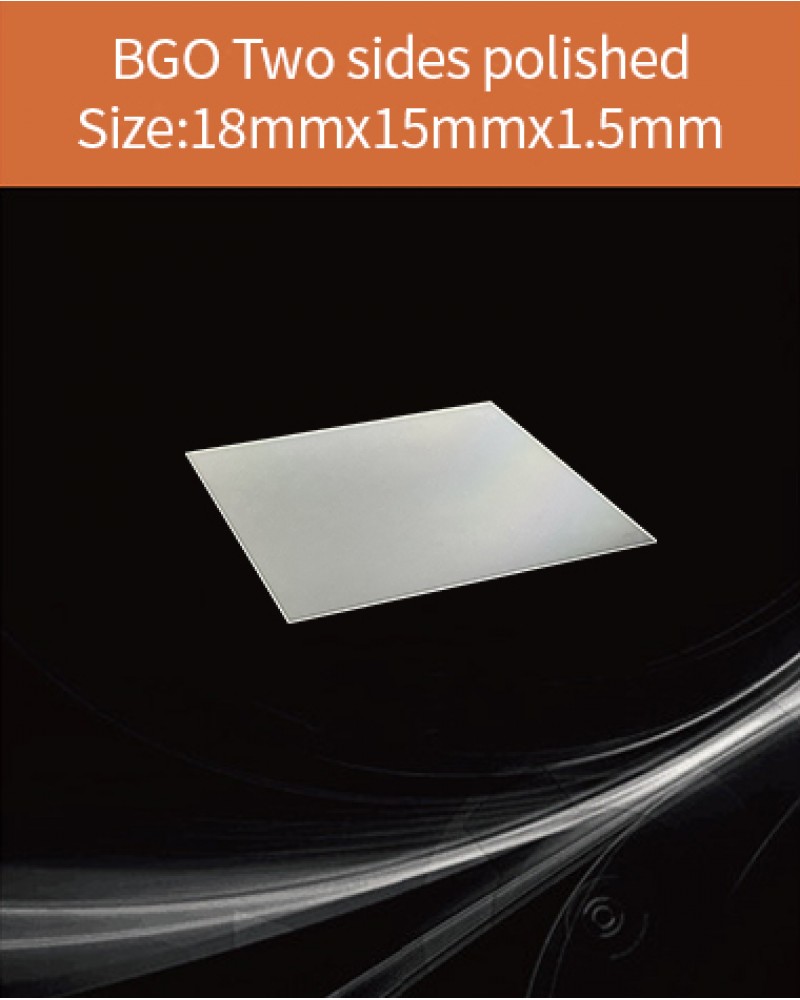

BGO crystal Specification

1. Dimension: 18mmx15mmx1.5mm

2. Polish: both sides polished

3. Tolerance: ±0.02 mm

BGO crystal Features

1. Good radiation hardness
2. High density and atomic number

3. No hygroscopic
4. Mechanical ruggedness
5. Maximum size: ø76 mm x 300 mm

BGO scintillator Main Applications

1. Positron emission tomography (PET)

2. High-energy physics

3. Nuclear medicine

4. Geological prospecting

5. Gamma pulse spectroscopy


BGO Scintillator Description

 BGO scintillator is one of the most widely used scintillation materials of the oxide type. It has high atomic number and density values. BGO scintillation crystal is mechanically strong enough, rugged, non- hygroscopicity, and has no cleavage .BGO crystal has an extreme high density of 7.13 g /cm3 and has a high Z value which makes these crystals very suitable for the detection of natural radioactivity (U, Th, K).

BGO Scintillation Crystal has an emission peak of 480 nm, coupling well with PMT and SiPM. Compared to other scintillation crystals, BGO has an unparalleled absorption rate at photopeak. Its energy resolution is about 10%. The scintillation characteristics of BGO changes linearly with temperature. Combined with digital signal processing (DSP), it can work under harsh conditions. With small volume, it can work stably under refrigeration.

Customized BGO Scintillation Crystal

Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
