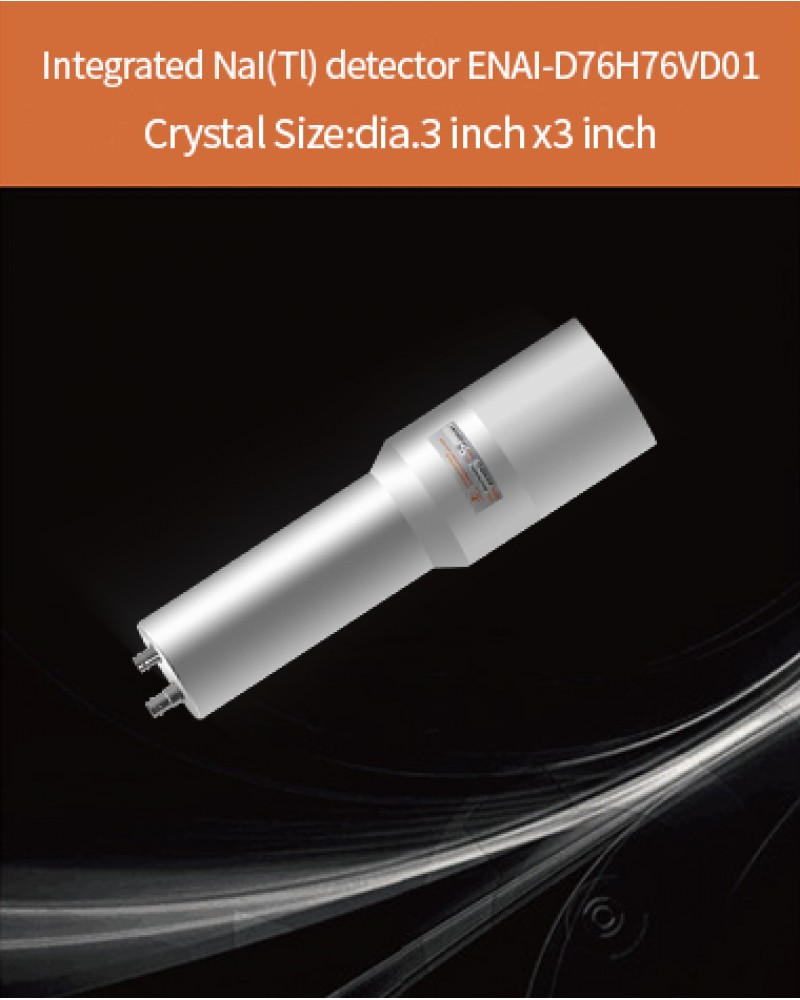

Model ENAI-D76H76VD01 Gamma Scintillation Detector

ENAI-D76H76VD01 scintillator detector is composed of a 3-inch Nal scintillator crystal, photomultiplier tube and voltage divider. Due to its high detection efficiency, good energy resolution, flexible matching, stable performance and easy to use, it is widely used in the fields of energy spectrum measurement analysis, building materials, food and other radioactive level analysis.

ENAI-D50H50VD01 NaI(Tl) Scintillation Detector Specifications

1.Application voltage: 0~+1250V

2.Effective size of scintillator: Ø75×75 mm

3.Interface type: BNC SHV

4.Energy resolution: ≤7.5%

5.Work environment Temperature: 0~+40℃

6.Storage environment Temperature: -20~+60℃

7.Storage environment Humidity: <90%RH

Note: 1) The output state of the detector is adjusted by using Cs137 radioactive source test.

Outline Dimensional Drawing
