Specification

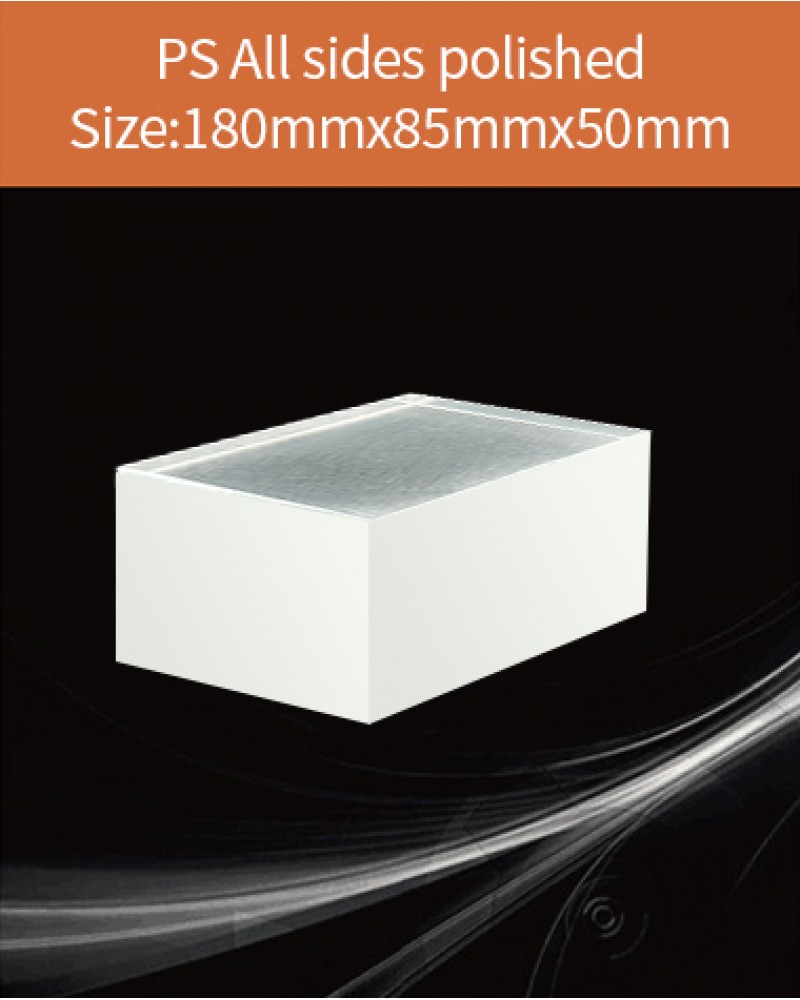

1. Dimension:180x85x50mm

2. Polish: all sides polished

3. Tolerance: ±0.02 mm

Basic information

1. Base material: Polystyrene

2. Growth method: Polymeric

General properties

1. Density(g.cm-3): 1.05
2. Decay time(ns): 2.40

3. Light output(%relatively of Anthracene): 64
4. Soften temperature(K): 348
5. Wavelength of emission peak(nm): 423
6. H/C ratio: 1.10
7. Refractive index: 1.58
8. Hygroscopic: no
9. Cleavage: no

Plastic Scintillator Description

Plastic scintillator is a special scintillation material, the main feature are its fast time response, low cost and large area possibility, it is very sensitive for alpha, Beta-rays and other particles with lower energy range.

Customized Plastic Scintillator

Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
