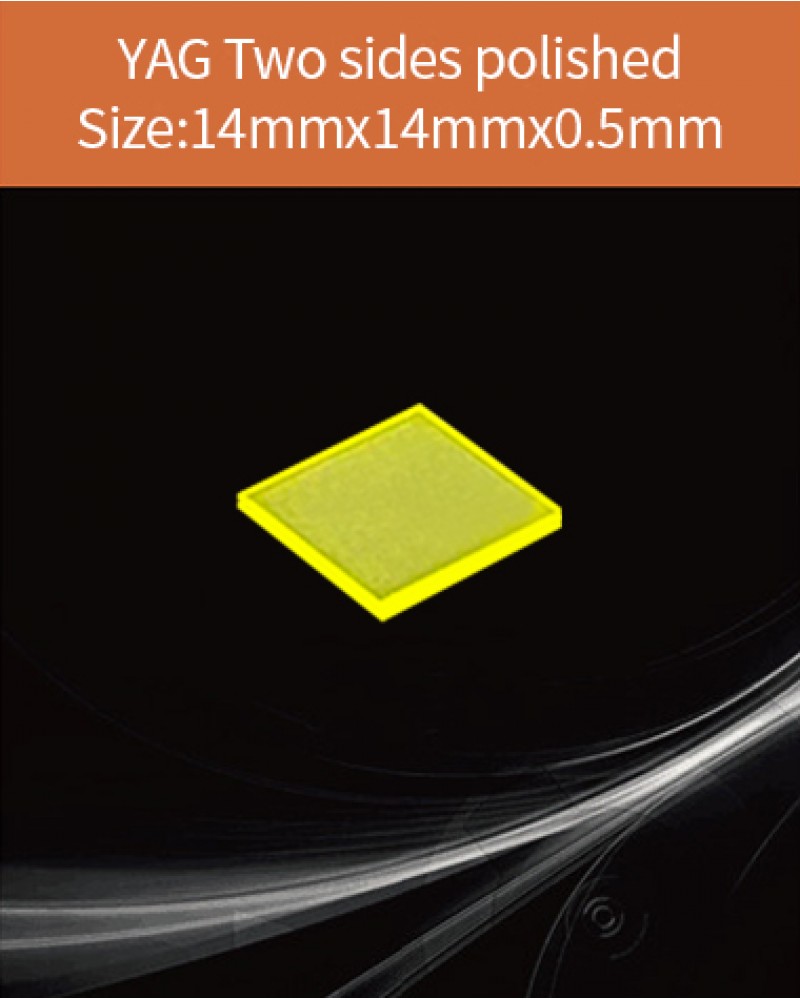

Specification

1. Dimension: 14 mm (length) x 14 mm (width) x 0.5 mm (thickness)

2. Polish: both sides polished

3. Tolerance: ±0.02 mm


Features

1. Relatively high light output

2. Ce concentration 0.2 at%
3. Maximum size: ø80 mm x 200 mm

4. Available items: Monolithic YAG Ce and YAG:Ce screen

YAG Ce Scintillator Description

Yttrium aluminum garnet activated by cerium (YAG:Ce) is fast with excellent mechanical properties and is chemically resistant scintillator. Mechanical properties enable to produce YAG:Ce scintillation screens down to a thickness of 100 um, YAG:Ce detectors are excellent for electron microscopy, beta and X-ray counting, electron and X-ray imaging screens.

Customized YAG Ce Scintillation Crystal

Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.

For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
